DC-12VHEAVY DUTY TIRE INFLATOR-Huizhou Cartee Electric & Machinery Co., Ltd.

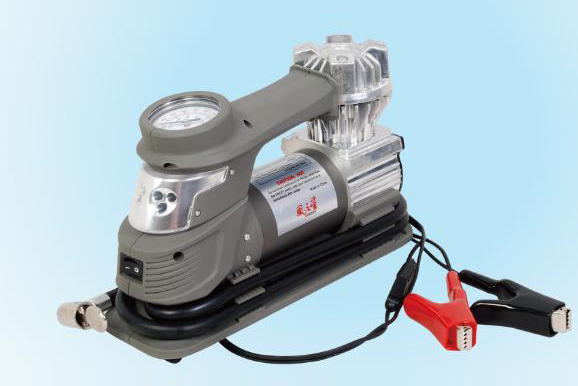

DC-12VHEAVY DUTY TIRE INFLATOR

Features：
1.Insulated battery clamps with 15A in-line fuse holder
2.Heavy duty, gearless, direct drive powerful motor
3.Anodized aluminum alloy cylinder
4.High strength stainless steel valves
5.High performance PTFE piston ring
6.Cylinder comes with heat sink, which extends unit's life span
7.Highly efficient work light, easy for working at night
8.Inflation nozzles snapped onto the unit
9.Oil-less design, mantenance free
10.Accurate pressure gauge, easy to read
11. With sand tray, power cord and air hose wrap around the unit for neat storage.

Consult

Service Hotline

13886501872
13809667059

Product Description

Voltage	DC-12V
Max. Ampere Draw	15A
19570R14 Tire Inflation Rate (0-2.1kg/cm²)	1Min48Sec.
Max. Pressure	120psi(8.4kgs/cm²）
Flow Rate	1.98CFM@0psi 56LPM@0psi
Operation Duration @30psi & 23C)	25MIN
Noise	71 dB
Power CordLength	6 M
Air HoseLength	1.1M
Net Weight (kg)	2.4 kg
Unit Dimensions (L * W * H, mm)	252.681.2165.86mm
